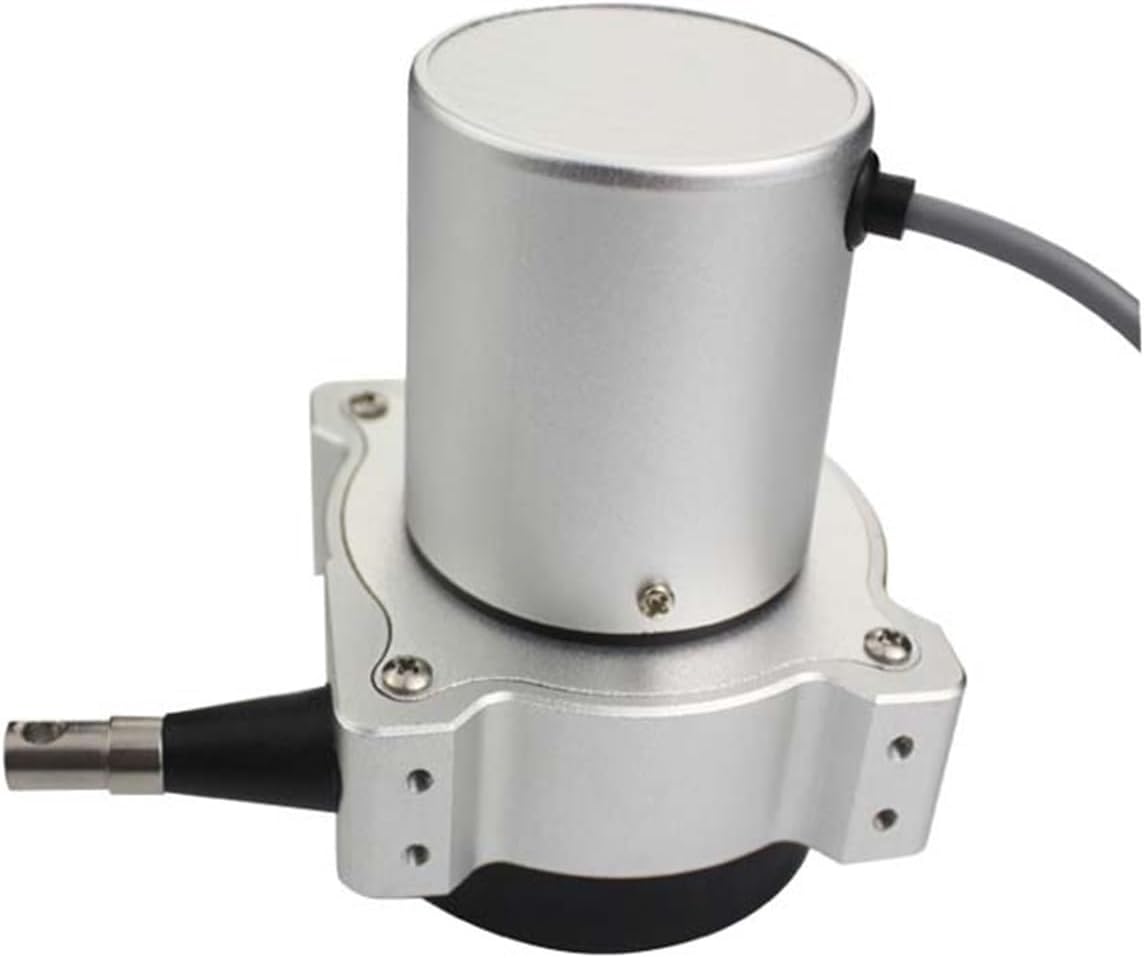

RWRAPS Linear Position Sensor SM-M Draw Wire Encoder 2 Meters Range Voltage Output Cable Linear Potentiometer (Color : 2000mm-V2(0-10V))

Item number: SM-M-V1-(1500mm-2000mm) 0-5V outputSM-M-V2-(1500mm-2000mm) 0-10V outputStroke Length(mm):1500mm2000mmWe can do any stroke between 1500mm-2000mm.when you place the order , If the stroke options is not what you want please remark the stroke you need. such as 2300mm 3650mm....Specification and Output signalThere are 6 kinds of output as below,please choose the one you need.R: 0-5K ResistanceV1:0-5VV2:0-10VA1:4-20mA with 3 wiresA2:4-20mA with 2 wiresP:incremental pul-se phase output AB phase or ABZ phase.The belowing is the specification of the voltage output.InstallationWire ConnectionBlack Color : connect with outputBlue Color: connect with negative pole( 0V )Brown Color: connect with positive pole (+12- 24VDC)

• measuring the bearing and machine Reciprocating motion
• The efficient linear displacement measurement device, can be used in industries such as cylinders and testing machines. widely used in the water conservancy and steel industries, a great choice space.
• suitable for various environments, the encoder has attracted widespread attention due to its small size, excellent performance under harsh conditions, accuracy, and flexible, simple installation.
• fine workmanship, attention to details, helps you improve the working efficiency!
• compact size and a light weight as well, easy to install, and can be put into use quickly.
